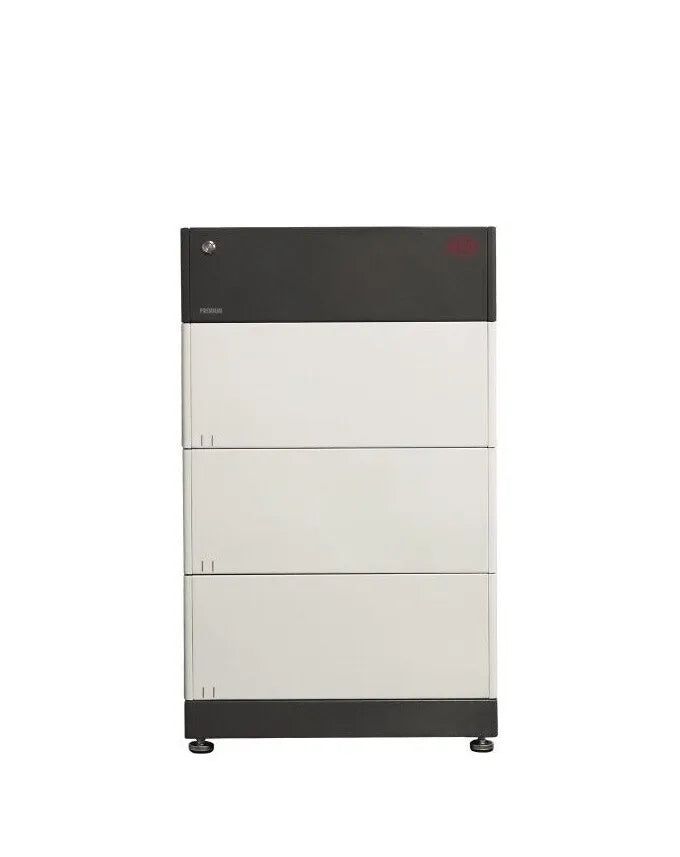

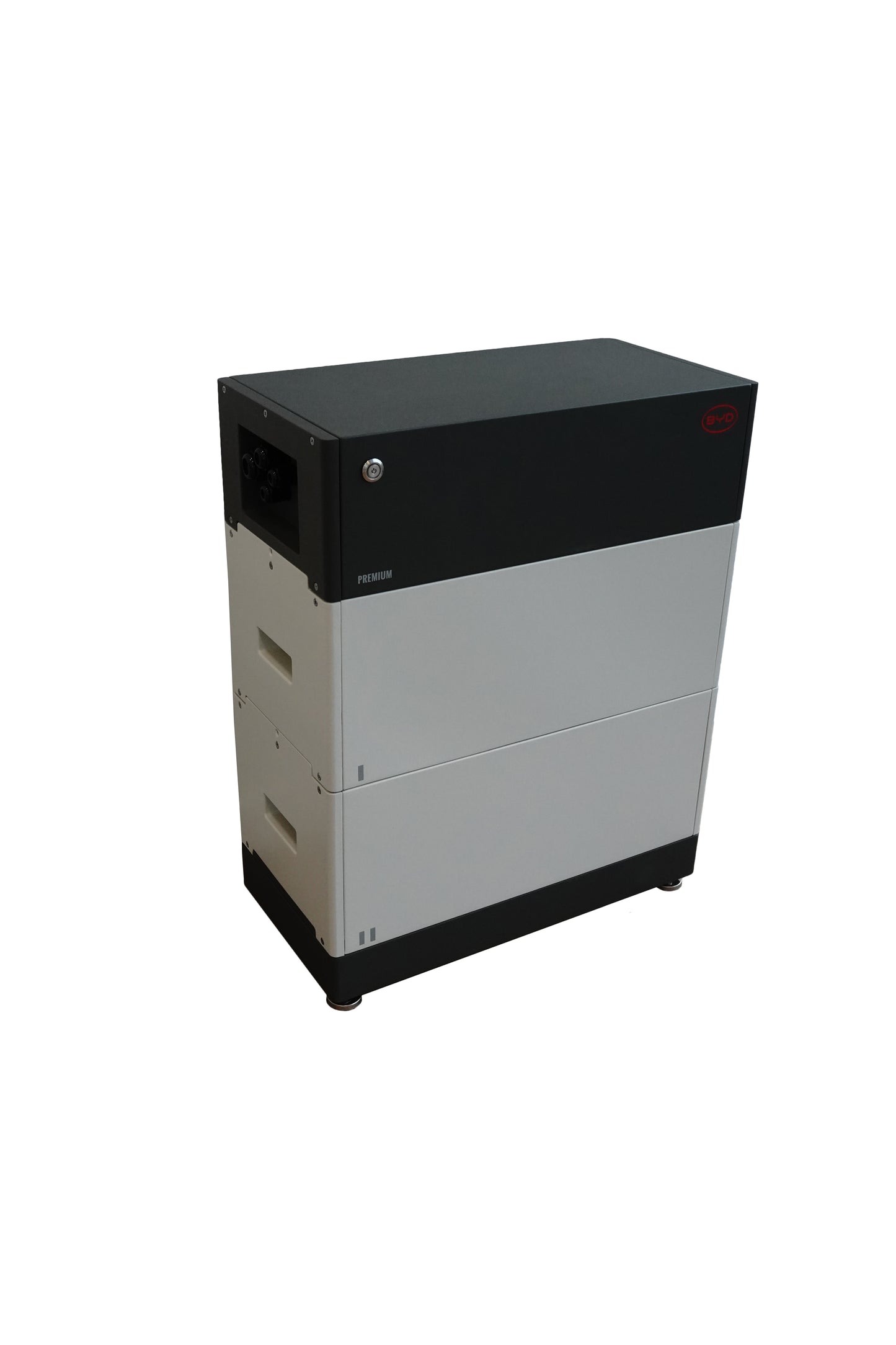

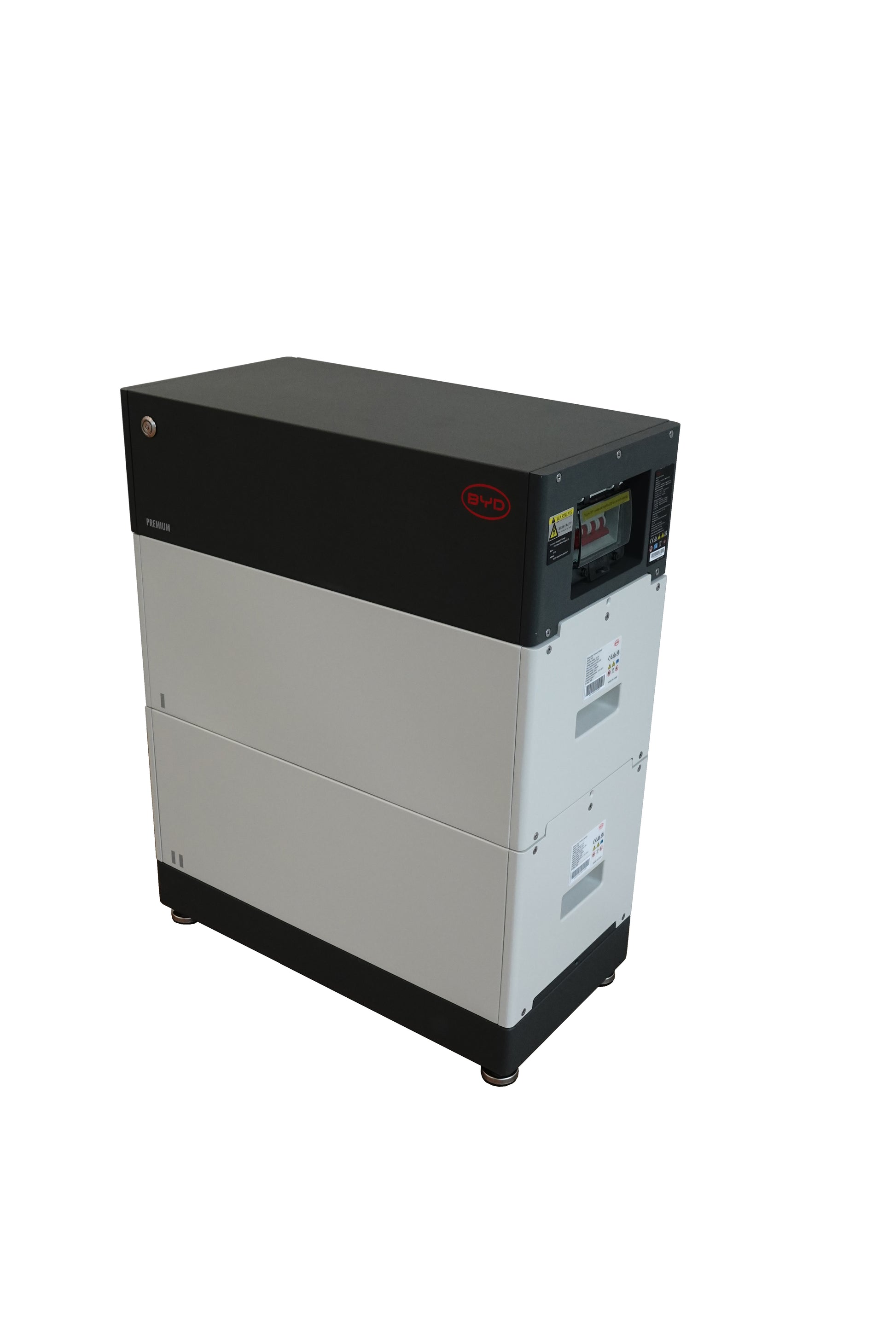

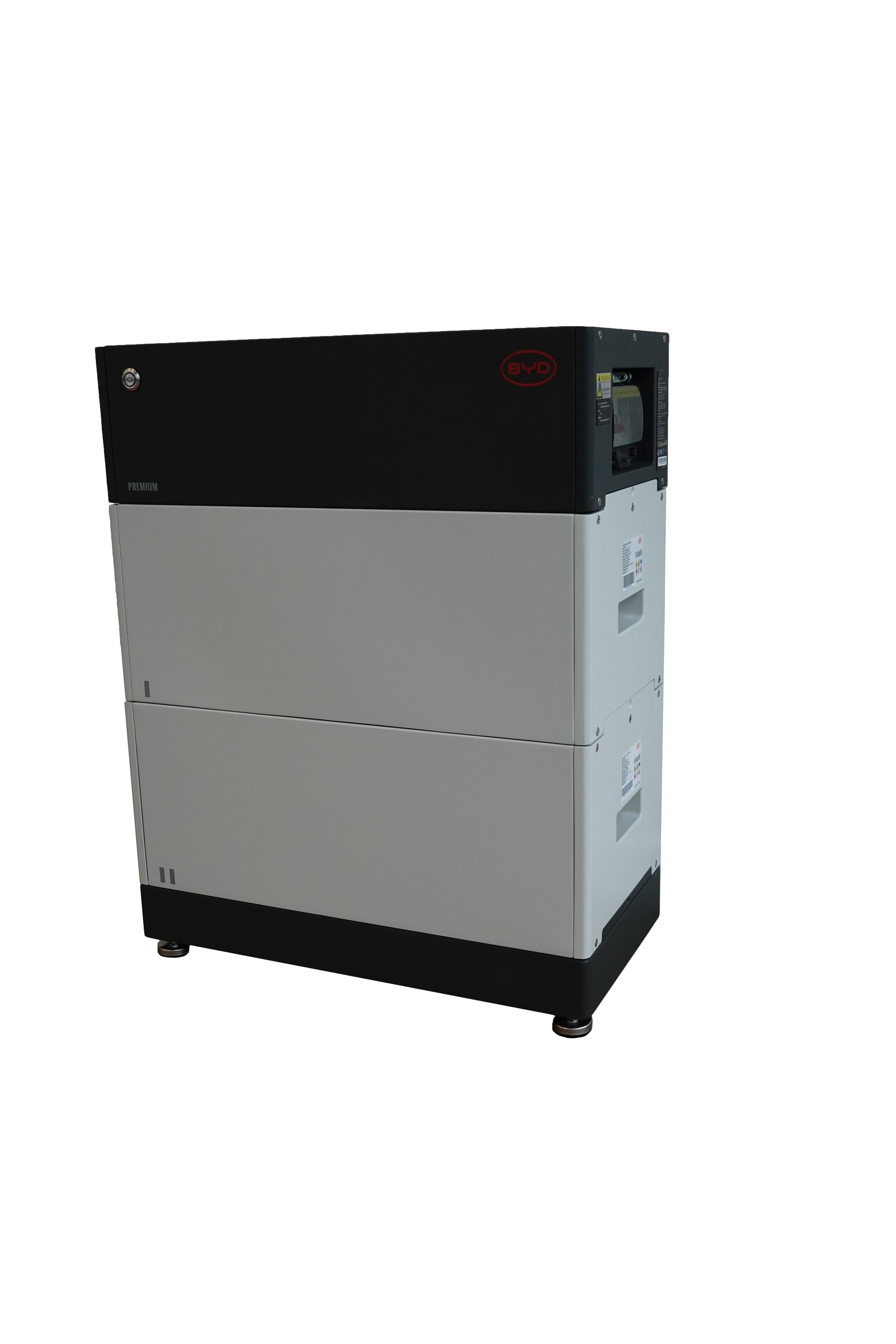

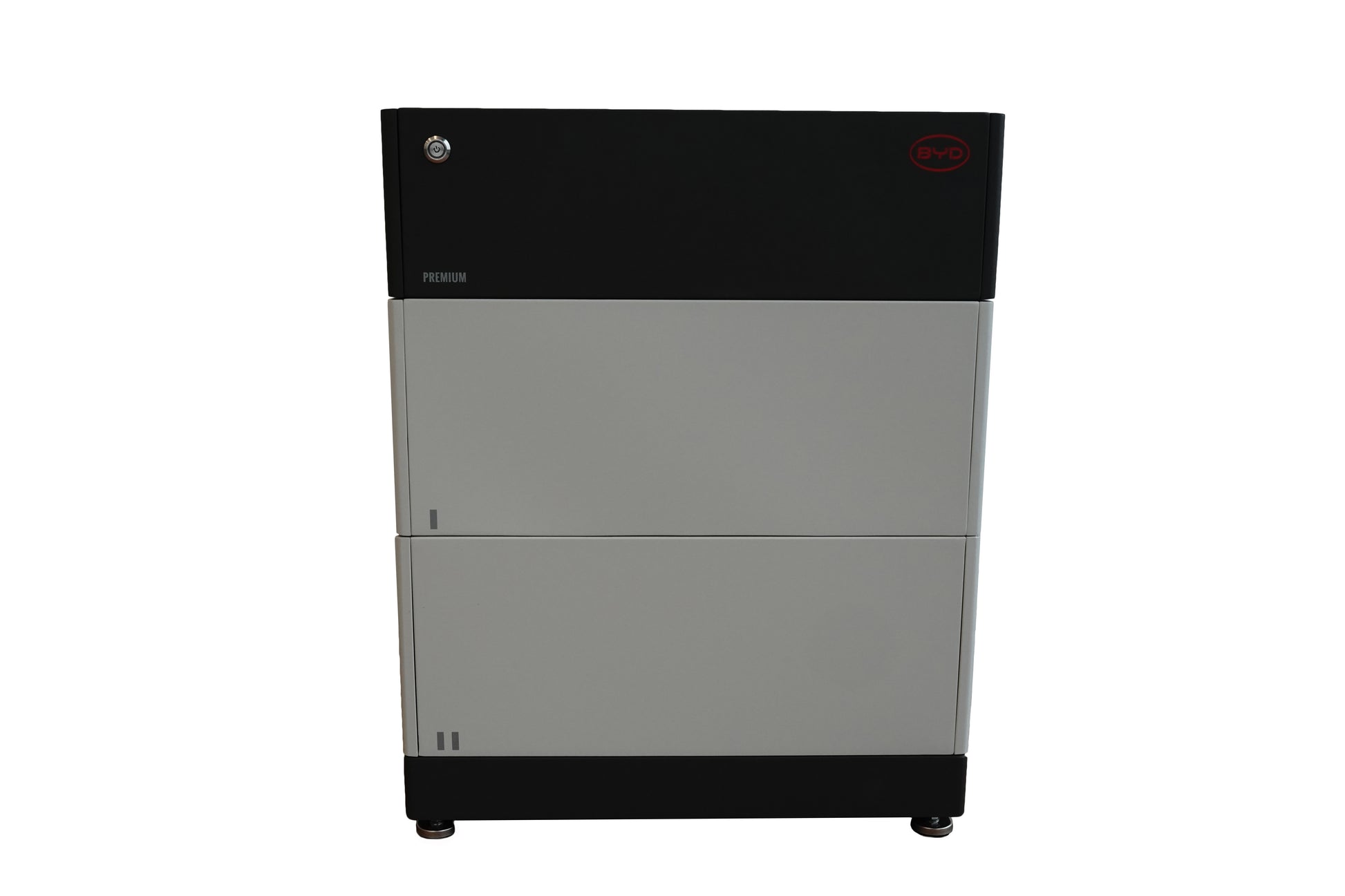

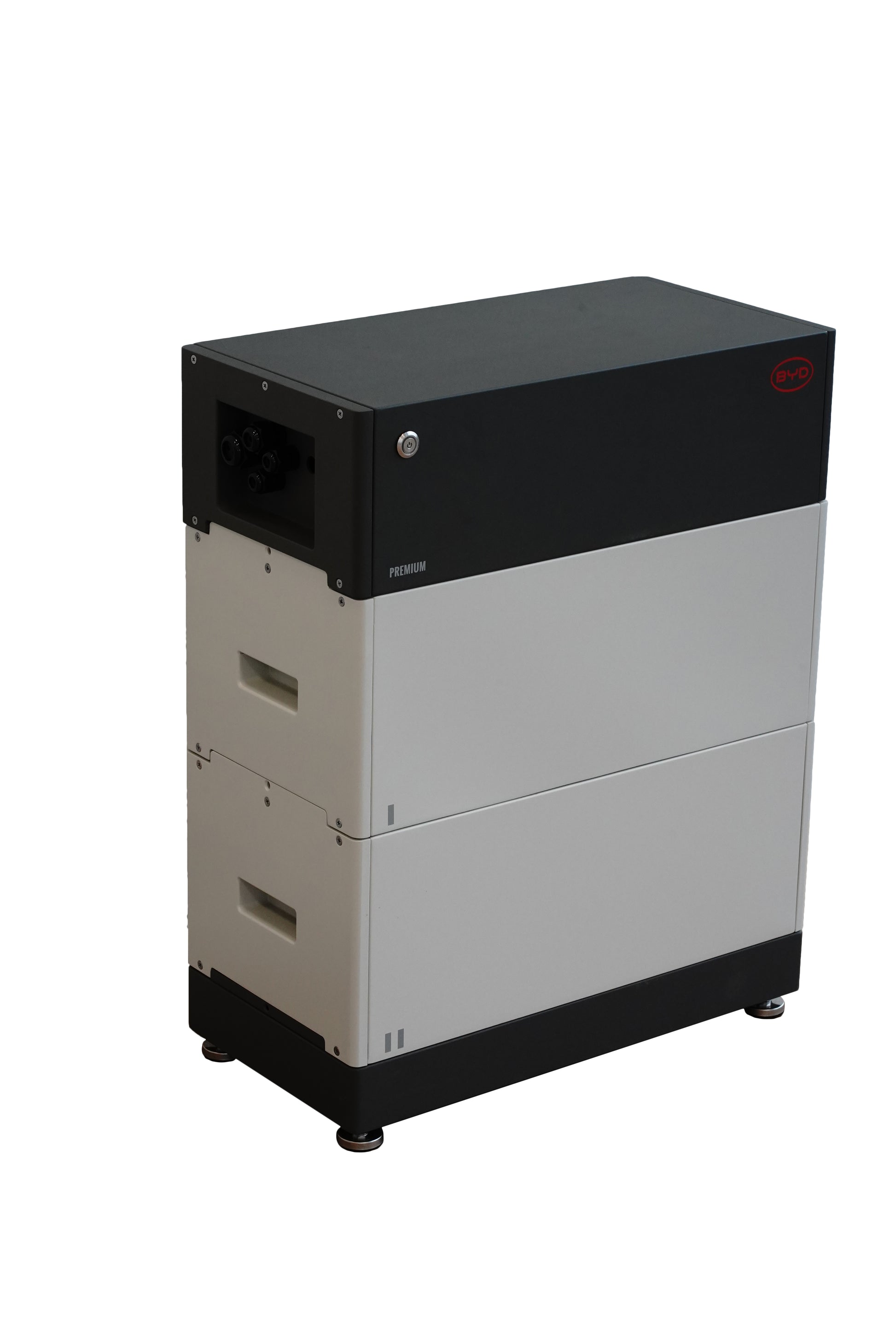

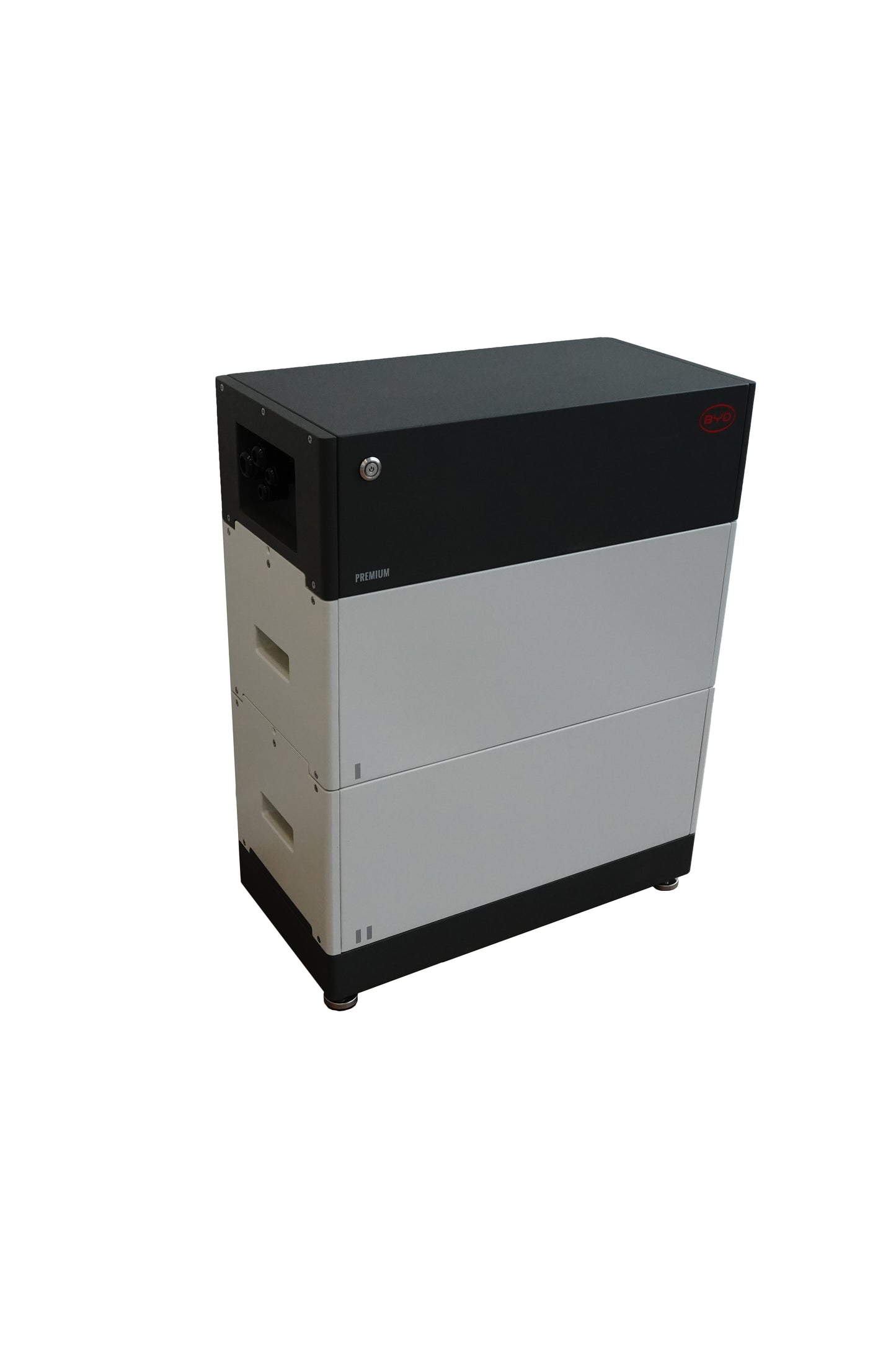

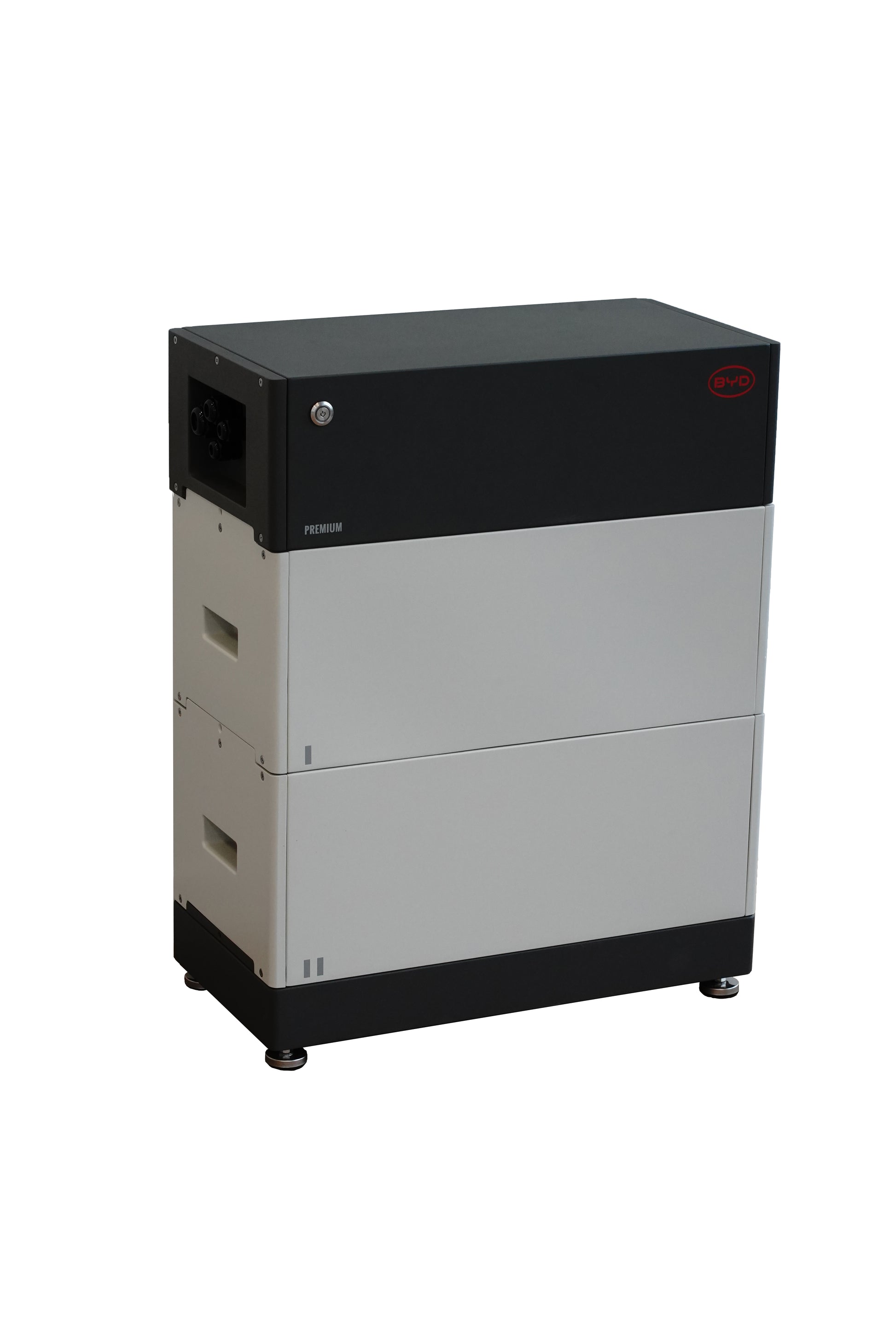

The HVM 11.0 battery box is a lithium iron phosphate (LiFEPO4) high-voltage storage system with a battery management system. The system is suitable as a storage system for self-consumption, for leveling off power peaks during industrial activities, but also as an emergency power supply,
To use the system, you need a hybrid inverter. The following hybrid inverters can be used with this system:
Fronius Symo Hybrid ( Release CW33, Firmware Symo Hybrid = 1.16-6.1 BYD HVM BMS = 3.18, BMU = 3.13)
Fronius Symo GEN24 Plus (Release CW37, Firmeware: Symo Gen24 Plus =1.9,7-0
Fronius Primo GEN24 Plus: In planning, as of 13.01.2021
GoodWe HVS Release CW29 ET, BT, EH, BH (Firmeware GoodWe Inverter (ARM) V11 and new BYD BMS = V3.16, BMU = V3.7
KOSTAL Plenticore Plus 3.0, 4.2/5.5/7.0/8, 5/10.0 (KOSTAL inverter =01.42 BYD BMS = V3.16, BMU = V3.7)
KOKOSTAL Piko MP Pus 1.5-1, 2.0-1, 2.5-1, 3.0-1, 3.0-2, 3.5-1, 3.5-2, 4.6-2, 5.0-2 (KOSTAL inverter = PU-APP 3.7.0, KESM = 1.2, 0 BYD BMS = V3.16, BMU = V3.7)
SMA Sunny Box 3.7, 5.0, 6.0 (SMA inverter = 3.11,10R BYD BMS = V3.19, BMU = V3.13)
Sungrow SH5.0, 6.0, 8.0, 10RT (Release CW20, Sungrow inverter ARM = V11_V01_A, MDSP = V11_V01_A BYD BMS = V3.16, BMU = V3.7)
KACO Blueplanet hybrid 6.0 - 10.0 TL3 (Release CW36, KACO inverter = 5.8,6,3.7 BYD BMS = V3.19, BMU = V3.13)
